UV Laser Marking Machine

UV laser printers make clear, easy-to-see marks that don’t fade, which is excellent for industries where tracking and safety matter most. These printers are used by makers of medicine, medical tools, and beauty products to keep codes readable from start to finish. They can mark soft materials gently, meet strict rules and keep products safe.

Product Information Overview

Precision UV Laser Marking for High-Quality Metal Surfaces

UV laser marking machines give noticeable and exact marks on metal, perfect for industries that need sharp and detailed ID. They use a short UV light that marks gently, even on coated or heat-sensitive metals. This makes neat, clean codes, logos, and text that are easy to read and stay for a long time.

PRODUCT OVERVIEW

The UV laser works at a wavelength that is one-third of the usual laser (1064 nm), putting it in the UV light range. It’s often called a “UV laser printer.” It’s also known as a THG laser, made by changing 1064 nm to 532 nm with a special crystal, then to 355 nm with another. Because UV light is easily absorbed and doesn’t create much heat, this process is called “cold marking.”

The laser’s light size affects how small the laser dot can be. UV lasers use a shorter light (355 nm), which helps the beam focus on tiny spots. This lets the laser make very exact marks, even on small or detailed parts of a product. That’s why UV lasers are great for fine marking without heat damage.

The shorter light wave makes a smaller laser point, helping the laser mark tiny or detailed spots very clearly. This makes UV lasers great for jobs needing tiny text, logos, or numbers in tight spaces, like in electronics, medical tools, beauty packs, or chip labels. They make clean, sharp, lasting marks without touching or heating, keeping even soft parts safe and strong.

Product Advantages

Industry trend

Makers of PET packaging now use “thin-walled” PET to save money and cut waste. But this thin material can easily burn or bend with regular laser marking. UV laser printers fix this problem by using soft, low-heat light to mark without harm. They give clear, correct marks while keeping the weak surface safe and damage-free.

Stricter rules for drug packaging and labelling have led many companies to switch from ink systems to laser marking. Laser marking helps them follow the rules, track products better, and keep packaging safe. This method also keeps labels clear and correct, making sure product details stay readable and trusted from start to end.

HDPE (High-density polyethene) bottles are still widely used to pack medicine because they are strong and safe. These bottles need clear and lasting labels to help track the product. UV laser printers do this well by making dark, clear marks on the light surface of HDPE bottles. These labels are easy to read, stay on long, and follow industry rules.

Minimizes thermal impact

Photolysis treatment inhibits damage

UV lasers give off intense light that can break the bonds between molecules. This helps mark or process materials without creating heat on the surface, reducing damage and providing very accurate results.

Photolysis treatment inhibits damage

It also works well on shiny metals like gold, silver, and copper without creating too much heat. This helps avoid black marks and rough edges, keeps the surface smooth, and allows precise, accurate markings that resist rust.

Photolysis treatment inhibits damage

As electronics get smaller, the plastic covering them becomes thinner. A regular laser (1064nm) might go through this thin plastic and damage the parts inside. A UV laser (355nm) is a better choice because the surface absorbs it and doesn’t go deep, protecting the inside from damage.

Product Applications

UV lasers employ ultraviolet light to produce durable and highly accurate markings on materials such as plastics, glass, ceramics, metals, acrylic, and coated surfaces. Known for their accuracy and flexibility, they generate satisfactory, high-contrast results without contact, ensuring sensitive materials remain protected from heat or surface damage.

Designed for speed, UV lasers enhance productivity in busy manufacturing environments. They are long-lasting, require little maintenance, and remain reliable over time. Since they operate without inks, solvents, or harmful chemicals, they are environmentally safe and produce minimal waste. With straightforward installation and customizable settings, UV lasers adapt to different production requirements, giving manufacturers a cost-effective and dependable marking solution.

list of items

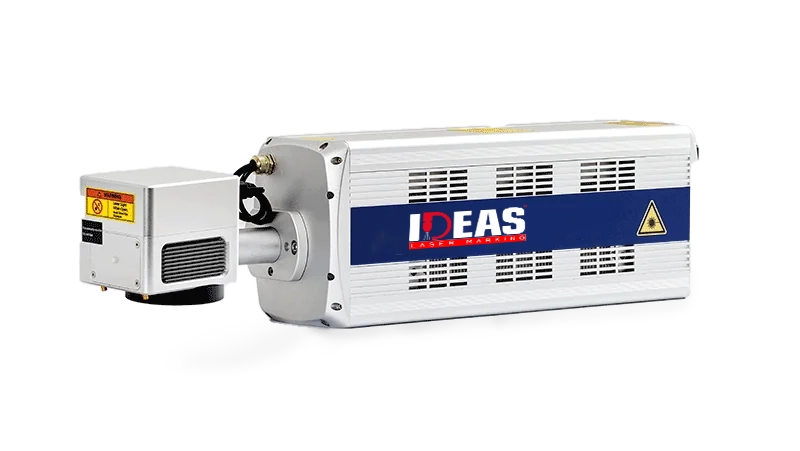

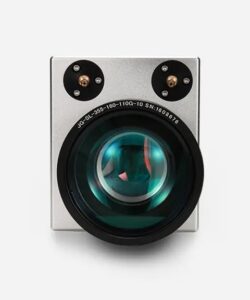

Each UV laser printer is delivered with all essentials for quick installation and smooth use. It includes the UV laser unit for sharp, high-contrast markings, an advanced electric control box to regulate the system, and a precision encoder that guarantees accurate results in line with production speed. A smart sensor is provided to detect products instantly and trigger the laser when required.

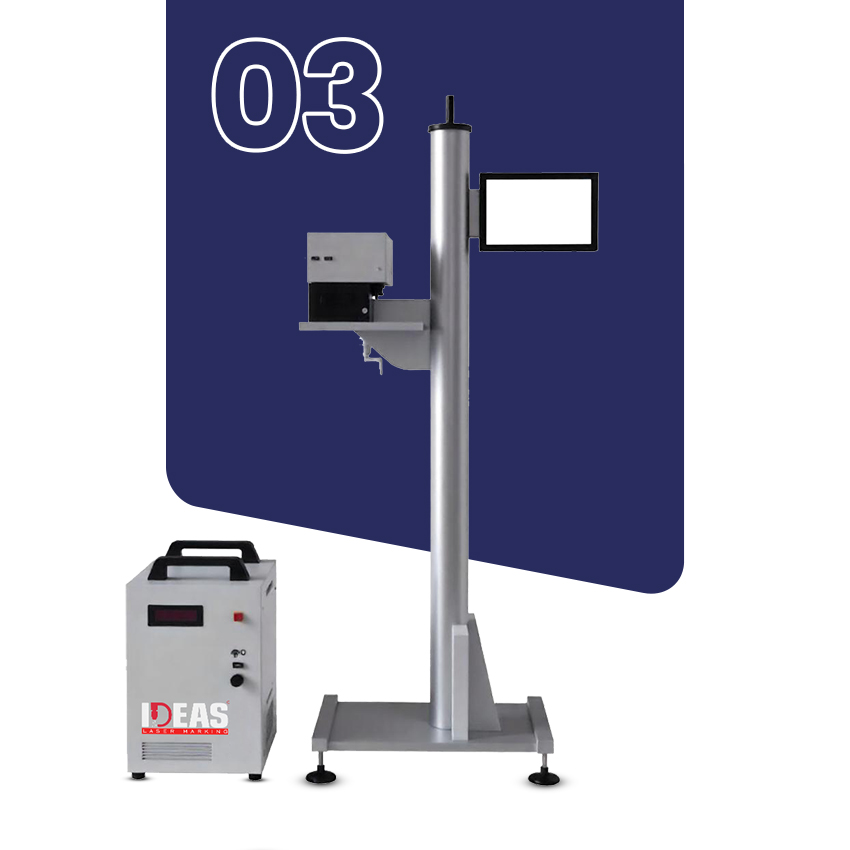

The system features an intuitive touchscreen for easy operation, enabling users to adjust settings, monitor performance, and handle marking tasks. A durable lifting bracket allows simple mounting and height adjustment to fit production layouts. Complete wiring and manuals are also included for setup and troubleshooting.

Technical Specifications

Category	Specification
Laser Type	Q-switched pulsed lasers
Max Output Power	3W / 5W / 10W
Laser Wavelength	355nm
Laser Lifetime (avg)	15,000 hours
Laser Class	Class 4 (IEC60825-1 compliant)
Max Linear Speed	20 m/s
Marking Speed	Up to 30 characters/sec
Coding Angle	Downward (90°) or flat (0°)
Marking Area	70x70mm, 100x100mm, 140x140mm, 200x200mm
Vibrometer	8mm / 10mm
Beam Expanders	2–10x (6x standard)
Spot Size	20μm
Marking Distance	255–265mm
Touch Interface	Built-in 10" Win10 touch screen
Communication Ports	Ethernet RJ45, RS232, RS485, USB, SD card
Voltage	200–240V, 50/60Hz
Power Consumption	300W
Ingress Protection	IP54 (standard), IP65 (optional)
Operating Temp	5–45°C
Humidity Range	Max 80% RH (non-condensing)

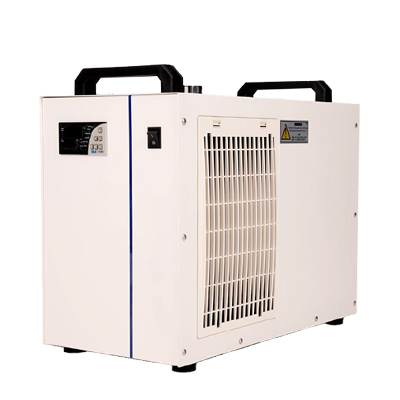

Cooling Method	Water cooling
Weights	Optical path: 21.3kg, Power: 8.4kg, Water tank: 29.5kg

Why Choose Our Laser Marking Solutions?

1. What is a UV laser marking machine?

A UV laser marking machine uses ultraviolet light (usually 355nm wavelength) to mark materials. It offers precise, low-heat marking, making it perfect for fragile and heat-sensitive materials.

2. What materials can a UV laser mark?

UV lasers can mark many materials like plastics (PET, PVC, HDPE), glass, ceramics, silicon wafers, sapphire, metals (gold, silver, copper), and coated packaging materials.

3. Why is UV laser called a “cold marking” method?

UV lasers use short wavelengths and create little heat, so they don’t burn or melt the surface. This results in clean, high-quality marks without damaging delicate parts.

4. What industries use UV laser marking machines?

UV lasers are commonly used in electronics, medical devices, medicines, cosmetics, food packaging, and semiconductors, where precise and safe marking is needed.

5. What’s the advantage of UV lasers over fiber or CO₂ lasers?

UV lasers create excellent marks with little heat. They can mark tiny parts and shiny materials without causing damage like burns or cracks.

6. Is UV laser safe to use?

UV lasers are Class 4 lasers, and they need safety tools like shields, goggles, and good airflow. When used correctly, UV lasers are safe and reliable.

7. Can UV lasers mark on transparent or light-colored materials?

Yes! UV lasers are great for marking explicit, light, or shiny materials like transparent plastics and white HDPE bottles, giving clear and visible results.

8. How long is the lifespan of a UV laser machine?

UV laser sources usually last about 15,000 hours, depending on use. They need some maintenance, especially the water-cooled ones.
